Rishubh Parihar   Sachidanand VS   Venkatesh Babu R  

Vision and AI Lab, IISc

TL;DR: We present a zero-shot framework for realistic, depth-aware image editing using a novel feature-guidance technique (FeatGLaC) that enables seamless object insertion and depth-based scene compositing while preserving scene identity.

Abstract

In this work, we introduce a generalized zero-shot framework for depth-aware image editing. Our approach enables realistic scene editing, such as object insertion at specific depths and blending a scene's foreground with another's background while preserving the identity of the input scene. The key idea is to integrate Depth-Guided Layer Decomposition (DeGLaD) in the feature space of diffusion models. Specifically, we propose Feature-Guided Layer Composition (FeatGLaC), a layered guidance mechanism on the feature space of denoising UNet model which allows for image editing by progressively steering the latents toward the desired edit while maintaining the orignal scene appearance throughout the denoising process. We validate our approach on three depth-aware editing tasks:

• Object Insertion: Inserting an object at a specific depth layer while preserving both object and scene identity, with seamless blending.
• Scene Composition: Depth-based composition of two scenes, where the foreground and background is blended at user given depth layer following uniform lighting.
• Scene Relighting: Scene relighting, where the foreground seamlessly adopts the lighting characteristics of the background scene.

Motivation

Depth Guided Layer Decomposition (DeGLaD) is an efficient 2.5D scene representation that allows for depth-aware editing. However, when directly applied in the pixel space, it struggles to model the accurate foreground and background scene interactions, particularly in terms of scene lighting, color harmonization, and shadow generation (as shown below). To address this, our approach leverages the rich image generation priors from pretrained image diffusion models via FeatGLaC. This enables depth-consistent, realistic scene compositions while preserving details in foreground and background regions.

Drag the slider to see the comparison with DeGLaD in Image space.

Scene Compositing

Pixel α compositing

FeatGLaC (Ours)

Object Insertion

Pixel α compositing

FeatGLaC (Ours)

Method Overview

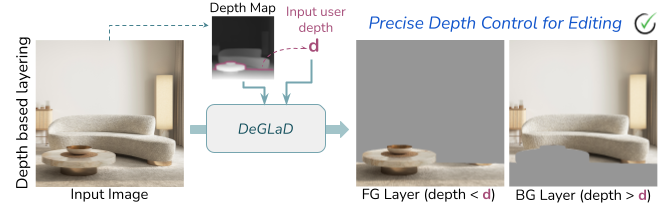

Step 1: Depth-Guided Layer Decomposition

Scene depth serves as an effective representation to model the underlying scene geometry and enables enhanced control over 3D scene structure. This motivates us to represent the scene as foreground and background layer based on user given depth. Given an input image, its depth map, and a user-specified depth d, DeGLaD decomposes the image into foreground (depth < d) and background (depth > d) layers based on the scene depth. This decomposition enables precise depth-aware editing via independent editing of each layer,

\[ \mathbf{M_{\text{fg}}(i,j)} = \mathbb{I} \left( D(i,j) < d \right), \quad \mathbf{M_{\text{bg}}(i,j)} = \mathbb{I} \left( D(i,j) \geq d \right) \]

Step 1: Depth-Guided Layer Decomposition: Obtain foreground and background layer based on user given depth.

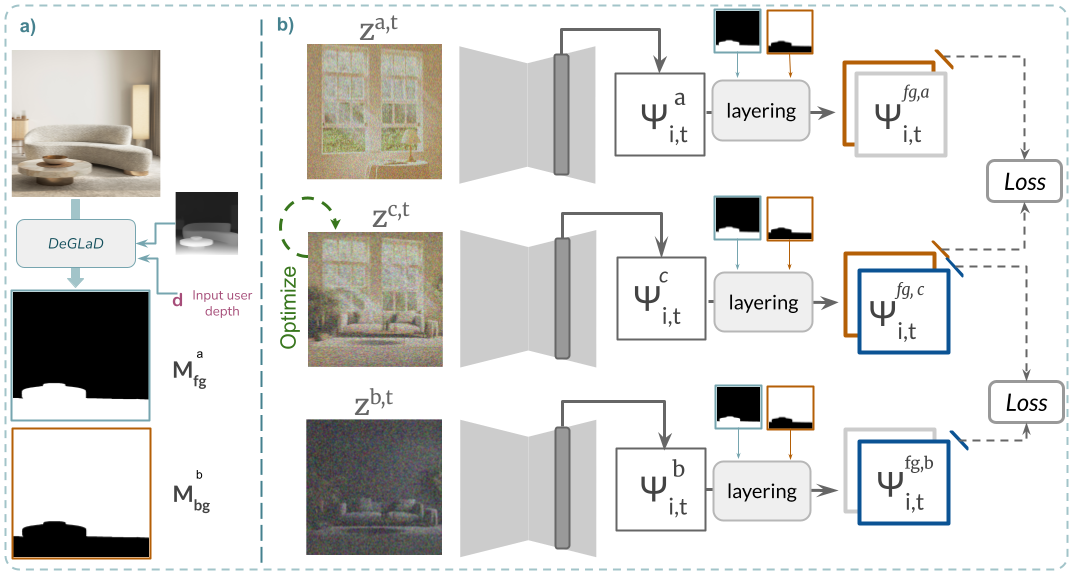

Step 2: Feature guided Layer Composition

We introduce Feature-Guided Layer Composition (FeatGLaC), a layered representation embedded in the feature space of the denoising U-Net within diffusion models. These layered feature representation enables precise control over the generated image. However, directly α compsiting the layers during generation can push the latents outside the original distribution, resulting in unnatural editing results. To address this, we propose a softer way to edit the diffusion latents with FeatGLaC which is a guidance mechanism, where the diffusion latents are progressively steered toward the desired edit at each denoising step.

Step 2: Feature guided Layer Composition: Guide the foreground layer based of based on the task specific mask obtained from DeGLaD.

Intuition: We force the foreground layer ($fg$) of $\Psi^{c}_{i,t}$ to be close to the foreground layer of $\Psi_{i,t}^a$ and the background layer ($bg$) of $\Psi^{c}_{i,t}$ to be close to the background layer of $\Psi_{i,t}^b$ as shown in above Fig. This is implemented by defining $\mathcal{G}$ :

\[ \sum_i \left\| \mathbf{M^a_{fg}} \cdot (\Psi^{a}_{i,t} - \Psi^{c}_{i,t}) \right\|^2 + \left\| \mathbf{M^b_{bg}} \cdot (\Psi^{b}_{i,t} - \Psi^{c}_{i,t}) \right\|^2 \]

Results

We perform 4 depth aware editing using our method, which are all based on the layering-editing-compositing process described above.

• Depth-Aware Scene Composition
• Scene Relighting
• Depth-Aware Object Insertion
• Placing Object at different locations

Depth-Aware Scene Composition

Our method generates realistic depth-aware scene composite image with natural illumination interactions and preserving the foreground and background conents.

Hover over the background images to compose the scene with selected background image.

[Please wait for a few minutes to load all the images]

Background

Output

Background

Output

Scene Relighting

Our method can also be used for scene relighting, where we want to relight the foreground scene based on the background illumination.

Hover over the background image to relight the foreground image in the same illumination.

[Please wait for a few minutes to load all the images]

Background

Output

Background

Output

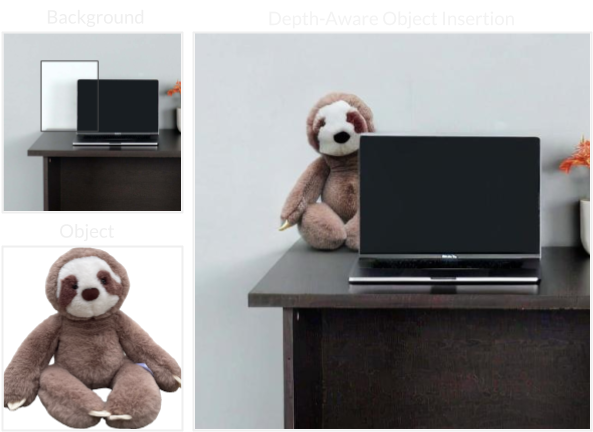

Depth-Aware Object Insertion

Given a single object image, our method can realistically insert the object at a precise depth, with natural blending with scene content, color harmonization, and appropriate shadows.

Hower over the object thumbnail image to insert it in the scene.

Placing Object at different locations

Hover over the image to move the placed object in the scene.
